Pusher

Office:
Cell:
e-mail:

678-919-1277
608-397-9517
info@dtmmachine.com

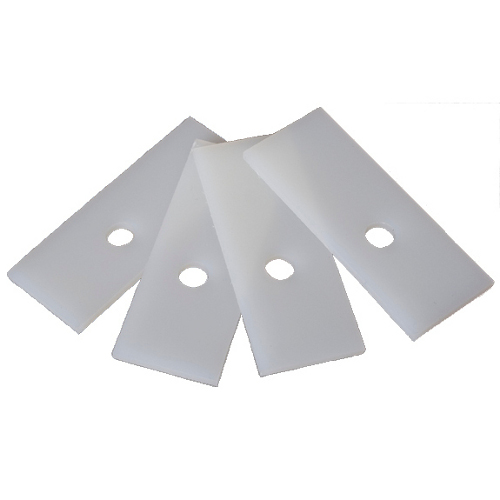

Pusher cleaning pads.  The cleaning pads help to keep the pusher beams and rollers clean. Once a month during regular maintenance of the pusher, check the condition of the scrapers to ensure they are properly cleaning the beams and rollers. There are 4 scrapers on each pusher. New lower price!

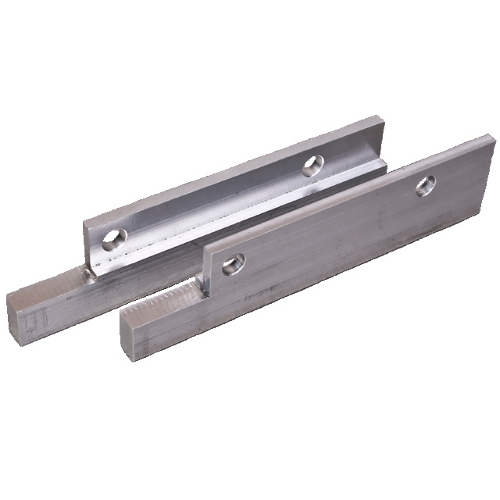

Gripper pushing points. These are the aluminum blocks on the front of the grippers, the surface against which the operator places the material.  DTM Machine uses a wide design, which provides a more solid alignment surface and greater longevity. Our pushing points are sold in pairs, left and right.  Note that the new points will likely need to be “trimmed” to ensure proper alignment across the entire pusher. Contact DTM Machine Service to schedule a visit.  There are two purchase options:

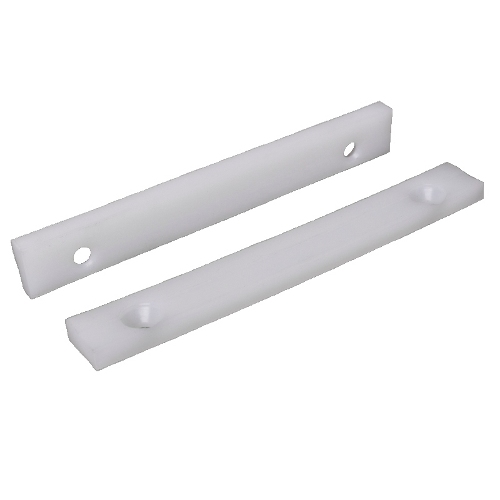

Pusher guides. These guides are a critical part of your pusher assembly.  Worn guides can allow the pusher to track incorrectly along its stroke causing squaring problems and collisions between the grippers and throat plates; these collisions will eventually necessitate expensive repairs.  Check the condition of the guides on a monthly basis to determine the need for replacement.  Our rule-of-thumb is to replace the guides when there is an overall combined gap of 1/16” (1.6 mm) or larger between the guides and the pusher rack, or when the guide is worn down to the wear indicator.

There are two different lengths available, and the guides are sold in pairs. Be certain to check the length before ordering:

• 130 mm (5 1/8”), #LP004. Replaces Giben AA05876:
• 150 mm (5 7/8”), #LP005. Replaces Giben AA03368:

DTM-brand Parts links

DTM Parts

• Saw Carriage
• Saw Base
• Pusher
• Side Aligner

$60 per pair
$60 per pair
